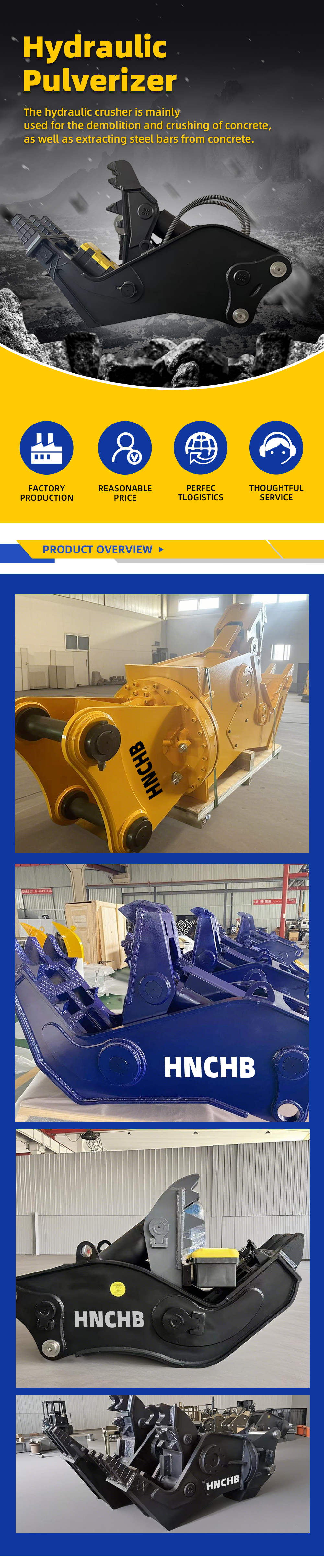

Pulverizer

Classification: Pulverizer

Tel: +8613791168675 (Lori Wei)

Details

Application

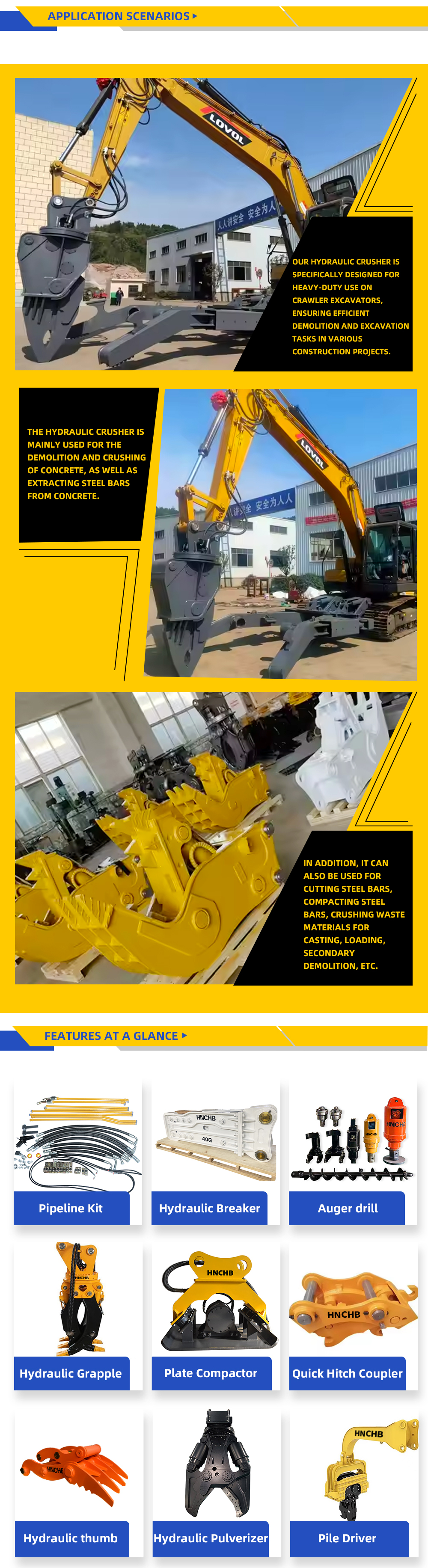

Crush beam columns and concrete building material.

Main features

Material THYSSENKRUPP XAR high precision; with both crush and cut functions.

Durable in use. e360° rotation function available.

Category	Unit	HNC-02	HNC-04	HNC-06	HNC-08	HNC-08S	HNC-10
B Max Open	mm	420	600	750	860	900	1100
C Cutter Length	mm	75	95	112	180	180	360
E Crushing Force	Kn	170	260	470	994	994	1350
Working Pressure	Mpa	24	24	31	32	32	32
Oil Flow	Lpm	80-120	100-140	120-180	180-250	180-250	200-300
Carrier	Ton	3-5	6-9	10-15	18-25	20-30	30-40
Weight	kg	270	480	880	1600	1980	2700
