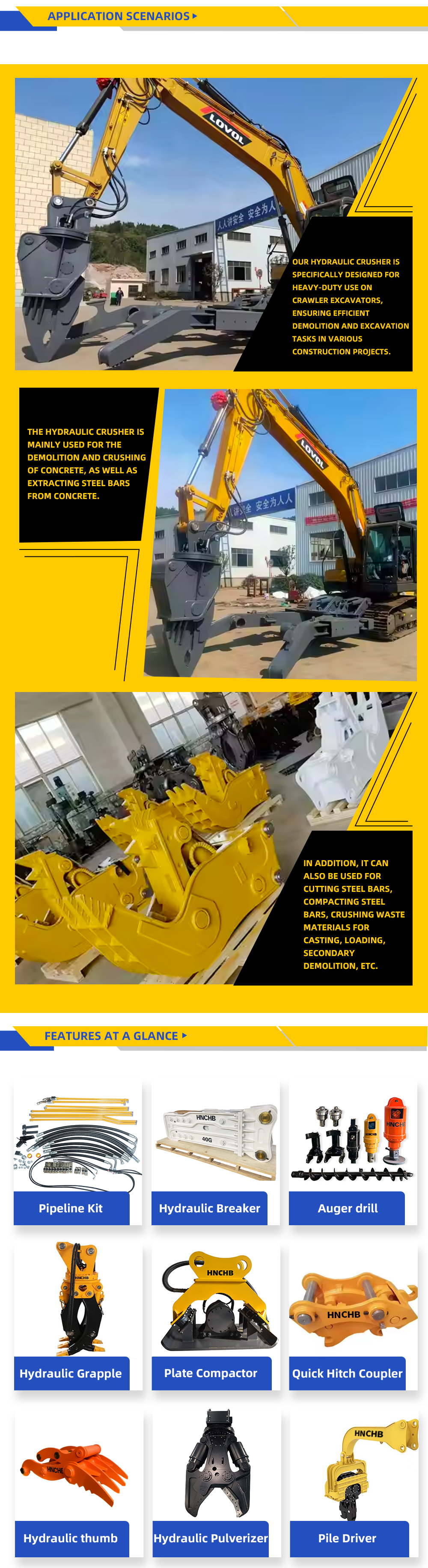

Application
Crush beam columns and concrete building material.
Main features
Material THYSSENKRUPP XAR high precision; with both crush and cut functions.
Durable in use. e360° rotation function available.
| Category | Unit | HNC-02 | HNC-04 | HNC-06 | HNC-08 | HNC-08S | HNC-10 |
|---|---|---|---|---|---|---|---|
| B Max Open | mm | 420 | 600 | 750 | 860 | 900 | 1100 |
| C Cutter Length | mm | 75 | 95 | 112 | 180 | 180 | 360 |
| E Crushing Force | Kn | 170 | 260 | 470 | 994 | 994 | 1350 |
| Working Pressure | Mpa | 24 | 24 | 31 | 32 | 32 | 32 |
| Oil Flow | Lpm | 80-120 | 100-140 | 120-180 | 180-250 | 180-250 | 200-300 |
| Carrier | Ton | 3-5 | 6-9 | 10-15 | 18-25 | 20-30 | 30-40 |
| Weight | kg | 270 | 480 | 880 | 1600 | 1980 | 2700 |
