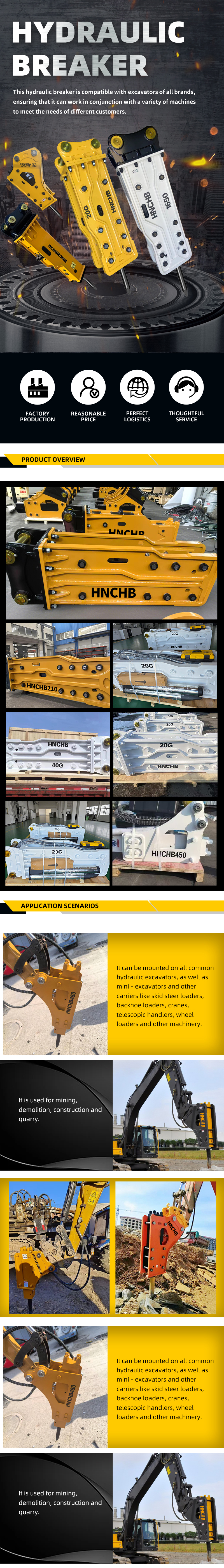

Used for mining,demolition, construction, quarry.lt can be mounted on all common hydraulic excava-tor as well as mini excavator and other carrier likeskid steer loader, backhoe loader, crane, telescopichandler, wheel loader and other machinery.
Main Features
1.Cylinder & valves: prevents scuffing with preci-sion finishing treatment.
2.Piston:every piston tolerance machined perfectly according to each cylinder.
3.Chisel:42CrMo, exceptional performance andreliability.
4.Seal kit: original NOK.
| Category | Unit | HNC-450 | HNC-530 | HNC-680 | HNC-750 | HNC-850 | HNC-1000 | HNC-1250 | HNC-1350 | HNC-1400 |
|---|---|---|---|---|---|---|---|---|---|---|
| Body Weight | kg | 67 | 85 | 152 | 210 | 278 | 475 | 616 | 846 | 916 |
| Total Weight (Sider/Top/Box) | kg | 91/91/125 | 154/154/151 | 259/339/357 | 331/405/446 | 554/633/729 | 757/862/1003 | 1273/1304/1367 | 1649/1843/1889 | 1763/2055/2007 |
| Operating Pressure | bar | 88-117 | 88-137 | 108-137 | 118-147 | 127-157 | 147-167 | 147-167 | 157-176 | 157-176 |
| Working Flow Rate | L/min | 20-30 | 25-50 | 40-70 | 50-90 | 60-100 | 80-110 | 90-120 | 130-150 | 120-180 |
| Impact Rate | bpm | 700-1200 | 600-1100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-650 | 400-800 | 350-500 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 |
| Chisel Diameter | inch | 1.77 | 2.08 | 2.68 | 2.95 | 3.35 | 3.94 | 4.92 | 5.31 | 5.51 |
| Suitable Carrier | ton | 1.2-3.0 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 10-15 | 15-18 | 18-26 | 18-26 |
| Category | Unit | 1400A | 1500 | 1550 | 1650 | 1650F | 1750 | 1850F | 1950 | 2100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Body Weigh | kg | 952 | 1088 | 1309 | 1438 | 1586 | 1929 | 2411 | 2626 | 3396 |
| Total Weight (Sider Top/Box) | kg | 1805/2090/2007 | 214/2376/2453 | 2573/2750/2964 | 2747/3152/2912 | 3273/3443/2917 | 3901/4053/3898 | 4376/4809 | 5039/5164 | 6683/6993 |
| Operating Pressure | bar | 157-176 | 157-176 | 176-196 | 176-196 | 176-196 | 176-196 | 186-216 | 186-216 | 196-235 |
| Working Flow Rate | L/min | 120-180 | 150-190 | 200-260 | 200-260 | 200-260 | 210-290 | 220-270 | 220-290 | 290-350 |
| Impact Rate | bpm | 350-500 | 350-700 | 250-400 | 250-400 | 250-380 | 200-350 | 200-250 | 180-200 | 150-200 |
| Hose Diameter | inch | 1 | 1 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 |
| Chisel Diameter | inch | 5.51 | 5.91 | 6.1 | 6.5 | 6.5 | 6.89 | 7.28 | 7.68 | 8.27 |
| Suitable Carrier | ton | 18-26 | 27-35 | 28-36 | 30-40 | 30-40 | 35-40 | 35-45 | 40-55 | 60-80 |
