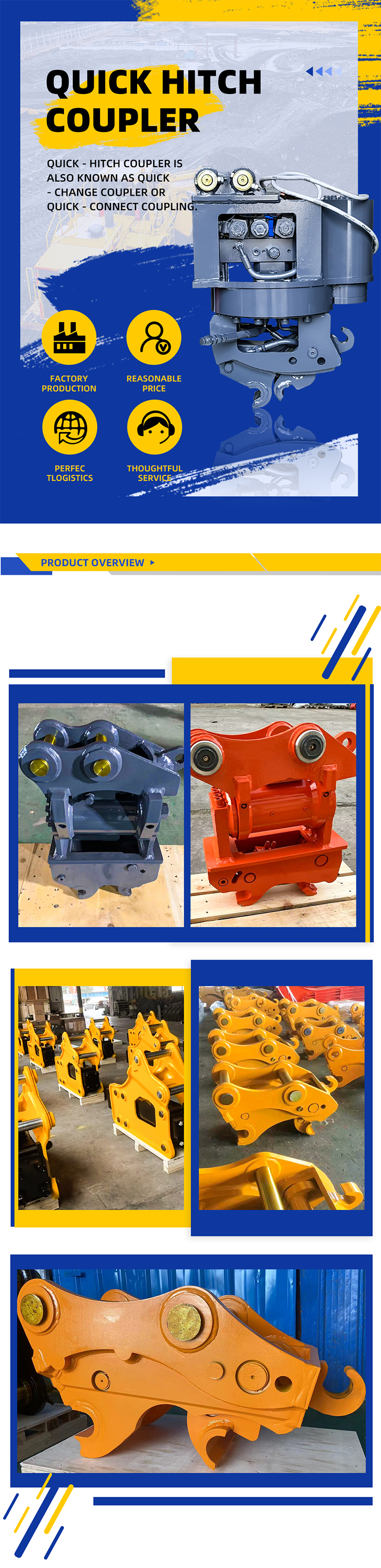

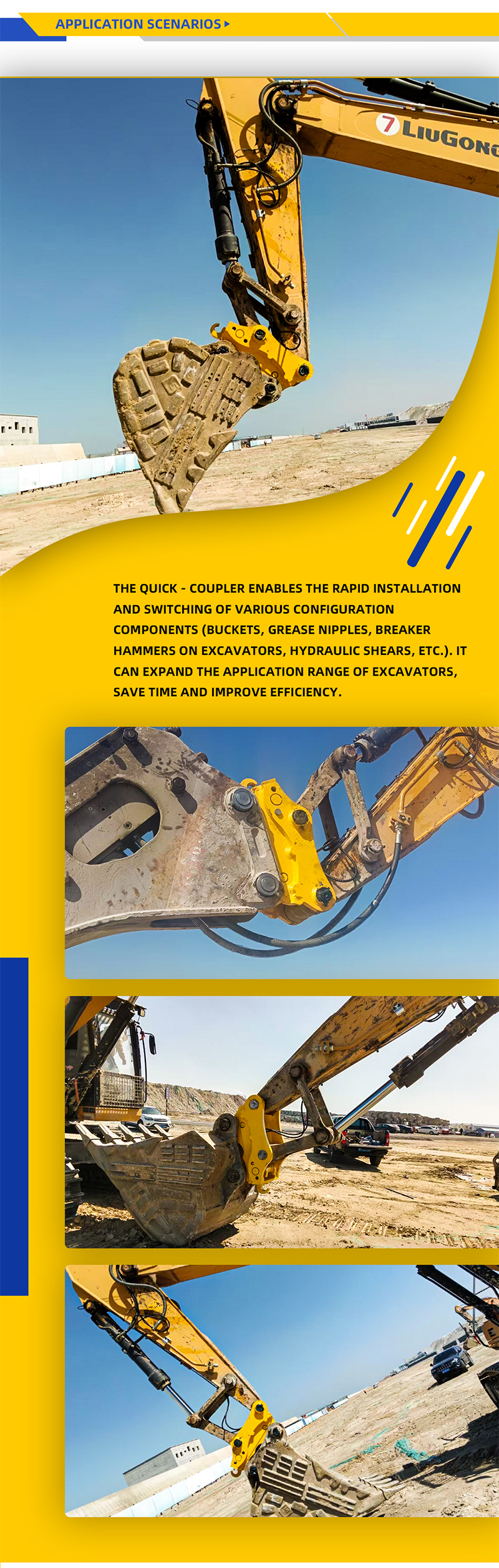

Reinforced cylinder with imported oil seals.(Simrit Germany brand) position.
High-abrasive front tiger mouth design.
Strong safety pin at accurate.
| Category | Unit | MINI | HNC-02 | HNC-04 | HNC-06 | HNC-08 | HNC-08S | HNC-10 | HNC-14 | HNC-17 | HNC-20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Length C | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 980-1120 | 1005-1150 | 1100-1200 |
| Width B | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445+493 | 543-572 | 550-600 | 602-666 | 610-760 |
| Height G | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 550-600 | 560-615 | 620-750 |
| A Arm Open Width A | mm | 82-180 | 155-172 | 181-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-450 | 380-480 | 500-650 |
| D Pins Center Distance | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 550-600 | 520-630 | 600-800 |
| Pin Diameter | mm | 20-45 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 | 100-110 | 120-140 |
| E Cylinder Strok E | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 510-580 | 500-650 | 600-700 |
| Vertical Pins Center Distance | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 | ||
| Weight | kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 | 550-750 | 1300-1500 |
| Working Pressure | kgf/cm³ | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Necessary Flow | l | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Carrier | ton | 0.8-4 | 4-6 | 6-9 | 10-16 | 18-25 | 25-26 | 26-30 | 30-40 | 40-52 | 55-90 |
