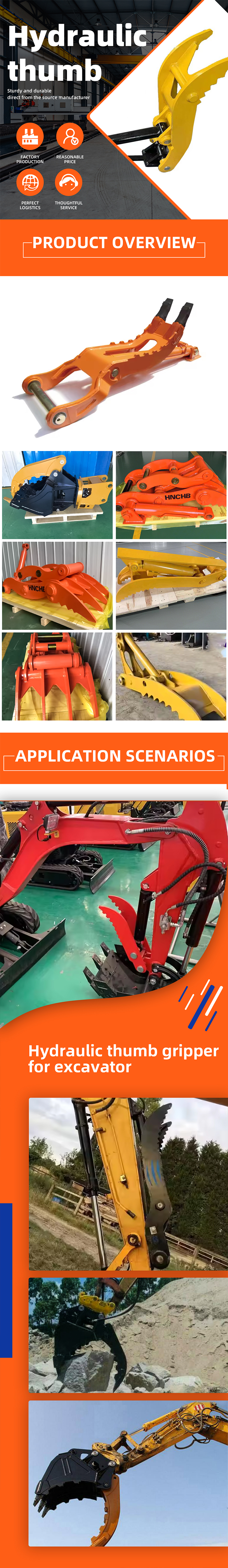

Hydraulic Thumb

Classification: Hydraulic Thumb

Tel: +8613791168675 (Lori Wei)

Details

Application

Make buckets much more functional and keep rocks or other objects from dropping.

Main Featurese

1.Easy to install and operate.

2.Custom service available.

3.Fit several buckets. Supportive tool; lower the cost and improve.

Category	Unit	HNC-00	HNC-01	HNC-02	HNC-04	HNC-06	HNC-08
Oil Pressure	bar	110-140	110-140	110-140	120-160	150-170	160-180
Operating Flow	lpm	30-55	30-55	30-55	50-100	90-110	100-140
Suitable Excavator	ton	1-2	2-4	4-6	7-10	12-16	17-23
Length A	mm	582	770	915	1143	1450	1780
Width B	mm	155	246	349	394	450	510
Base Plate Length	mm	813	1043.5	1220.5	1404.5	1845	2166
Weight	kg	41	65	110	165	325	520
Overall Dimension	mm	813×155×229	1044×246×322	1221×349×354	1405×392×466	1845×450×580	2166×510×657
