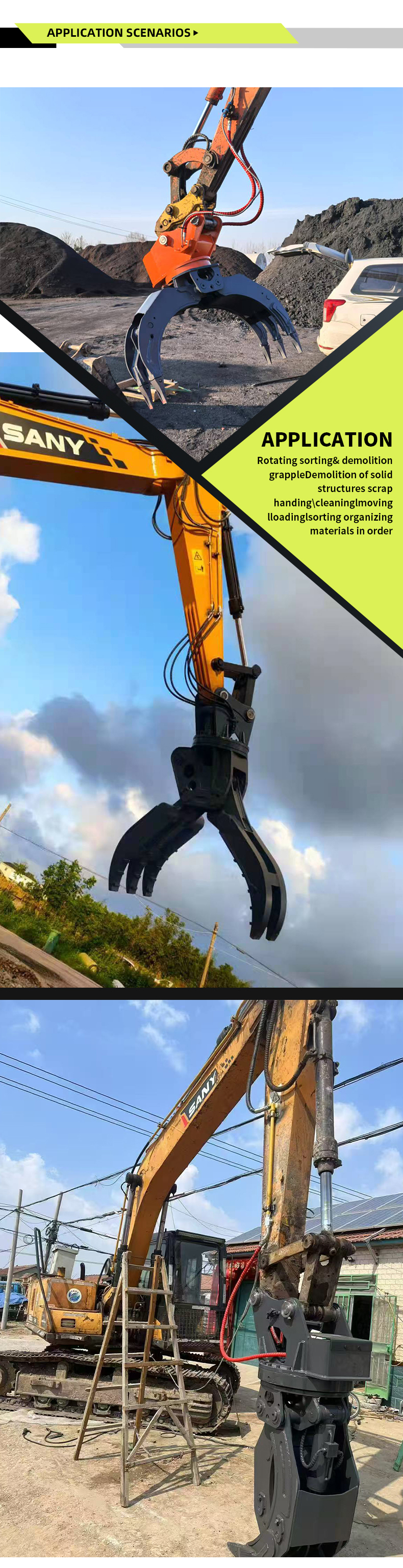

Applications
Steel scraps, wastes handling,loading and unloading.

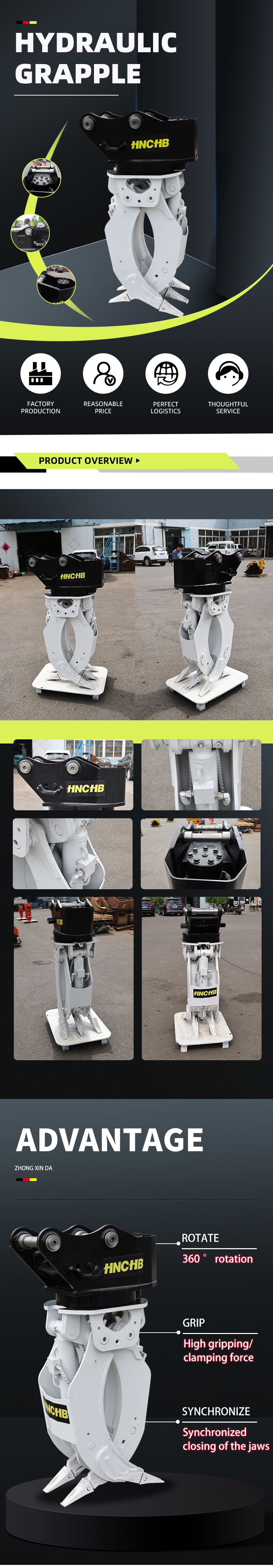

Main features
• Using NM500 steel and all pins are heat treated making our grapple with a very lon service life and high carrying capacity.
• 360° rotation function available.
| Category | Unit | HNC-01 | HNC-04 | HNC-06 | HNC-08 | HNC-10 |
|---|---|---|---|---|---|---|
| (A) Open Width | mm | 1100 | 1275 | 1623 | 1998 | 2474 |
| (B) Close Width | mm | 887 | 1064 | 1283 | 1684 | 2067 |
| (C) Hight | mm | 937 | 990 | 1083 | 1335 | 1550 |
| (D) Hight | mm | 1065 | 1117 | 1255 | 1537 | 2024 |
| Cylinder Thrust | ton | 3.14 | 3.14 | 5.6 | 9 | 15.7 |
| Oil Pressure | Mpa | 16-20 | 16-20 | 18-23 | 18-23 | 20-25 |
| Capacity(closed) | m3 | 0.10 | 0.15 | 0.25 | 0.60 | 0.90 |
| Capacity(open) | m3 | 0.39 | 0.61 | 1.08 | 2.24 | 2.99 |
| Carrier | ton | 3-4 | 4-9 | 12-16 | 17-25 | 26-35 |
| Weight | kg | 200-250 | 400-600 | 900-1100 | 1200-1500 | 1800-2200 |
