Product
Classification

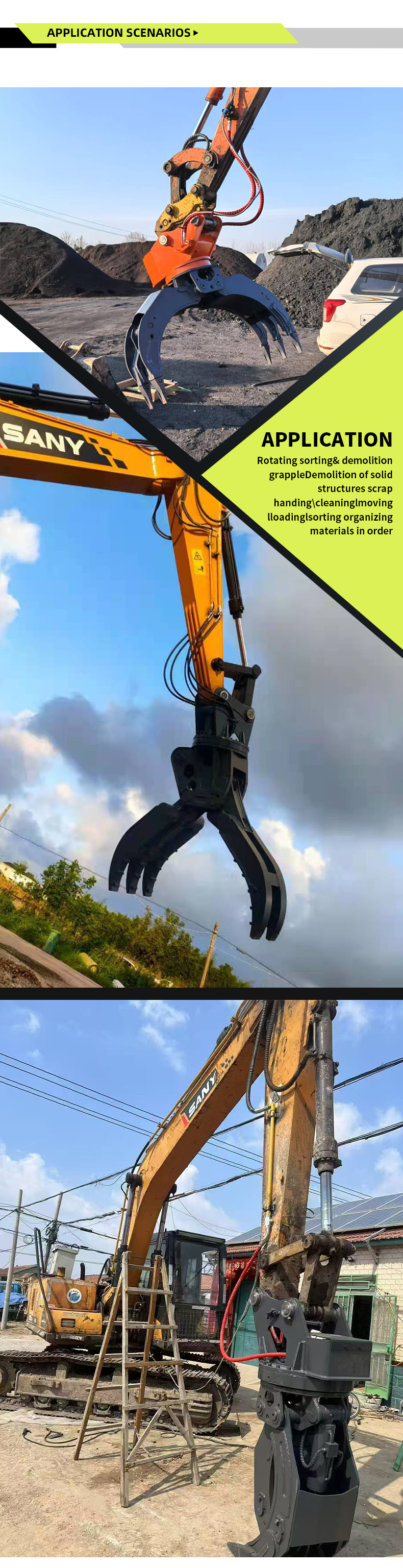

Applications
Widely used in waste recyle yards, gradens and mines.
Main Features
Eccentric pin design making pin center distanceadjustable. NM400 steel.
| Category | Unit | HNC-MINI | HNC-MINI | HNC-02 | HNC-04 | HNC-06 | HNC-08 |
|---|---|---|---|---|---|---|---|
| Oil Pressure | bar | 80-110 | 80-110 | 110-140 | 120-160 | 150-170 | 160-180 |
| Operating Flow | lpm | 25-40 | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 |
| Carrier | ton | 1-2 | 2-3 | 4-6 | 6-9 | 12-16 | 17-23 |
| Oil Cylinder Thrust | T | 3.9 | 6.6 | 10 | 10 | 12 | 24 |
| Open Width A | mm | 610 | 745 | 830 | 890 | 1225 | 1510 |
| Height B | mm | 680 | 900 | 1000 | 1105 | 1325 | 1675 |
| Width C | mm | 435 | 400 | 495 | 545 | 620 | 820 |
| Weight | kg | 110-130 | 130-190 | 250-290 | 350-380 | 570-620 | 650-800 |
