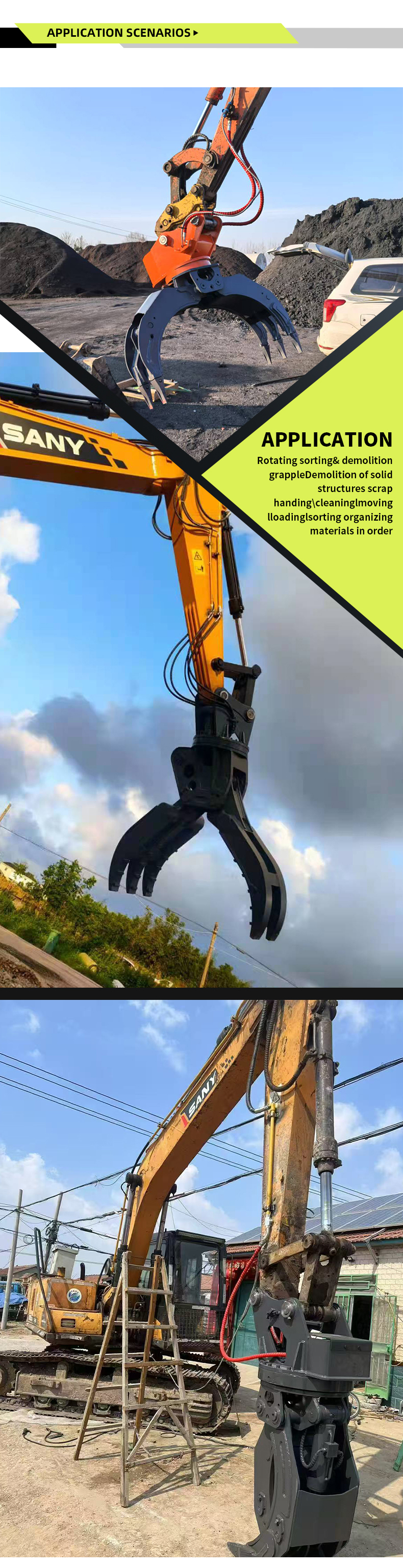

Demolition of solid structures, scrap handling, cleaning, moving, loading, sorting and organizing materials in order.
Main Features:
● Capable of grabing materials of different sizes in bulk.
● Abrasion resistant steel, durable in use.
● Driven by M+S motor with brake valve;cylinder with USA safety valve(USA SUN brand).
● Throttle, pressure reducing valve, relief valve (all the valves are USA SUN brand) are in electrical and hydraulic control system, making it safer and much more stable and durable in use.
| Category | Unit | HNC-01 | HNC-02 | HNC-04 | HNC-06 | HNC-08 | HNC-10 |
|---|---|---|---|---|---|---|---|
| Rotation Angle | 360 | 360 | 360 | 360 | 360 | 360 | |
| Motor Pressure | kg/cm² | 90-110 | 110-120 | 110-120 | 130-150 | 130-150 | 130-150 |
| Necessary Flow | lpm | 20-35 | 30-55 | 30-55 | 40-70 | 40-70 | 40-70 |
| Oil Cylinder FORCE | ton | 4 | 8 | 9 | 15 | 16 | 18 |
| Oil Cylinder Pressure | kg/cm² | 110-140 | 160-200 | 160-200 | 180-230 | 180-230 | 200-250 |
| Operating Flow | lpm | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 | 90-150 |
| Carrier | ton | 3-4 | 4-6 | 6-9 | 12-16 | 17-25 | 26-35 |
| Open Width A | mm | 1160 | 1400 | 1500 | 1700 | 1950 | 2400 |
| Width C | mm | 450 | 500 | 600 | 800 | 1030 | 1200 |
| Weight | kg | 200-220 | 310-330 | 440-460 | 900-960 | 1350-1500 | 1700-2100 |
